Factory Lead Time

12 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

8-DIP Module, 7 Leads

Number of Pins

6

Weight

48g

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

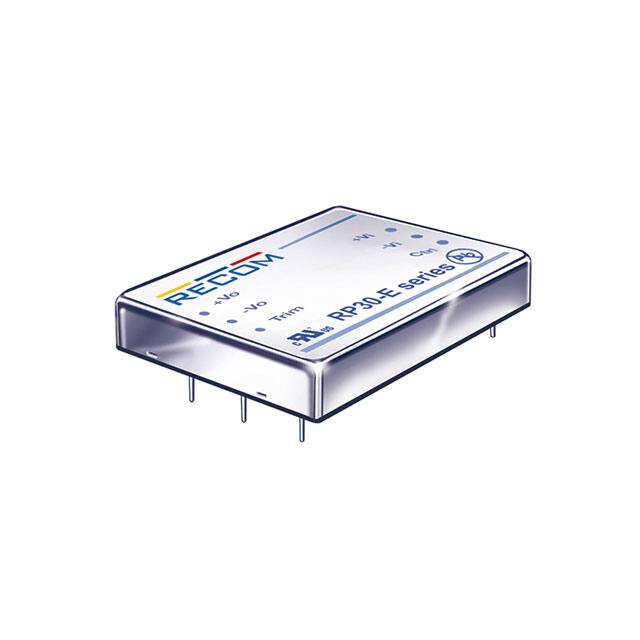

POWERLINE RP30-E (30W)

Size / Dimension

2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

7

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

30W

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

40.6mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDMA-P7

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

88%

Voltage - Isolation

1.6kV

Voltage - Input (Max)

18V

Output Voltage

15V

Max Output Current

2A

Voltage - Input (Min)

9V

Input Voltage-Nom

12V

Trim/Adjustable Output

YES

Output Current

2A

Output Power

30W

Control Features

Enable, Active High

Max Output Voltage

16.5V

Nominal Input Voltage

12V

Isolation

Isolated

Features

Remote On/Off, OCP, OTP, OVP, SCP, UVLO

Height

10.2mm

Length

50.8mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
